Or 5 antennas with 2 diplexers and there is no need to drill additional orrifices.
Like here: Wlan 5g not starting most of the time - #111 by michalko58
I suspect that these diplexers won’t do good with 6 GHz.
Good point, Iforgot that there is 6GHz. Diplexer has 5,8GHz sign on it.
Is it working on Turris 1.x? Because in FAQ it mentions kernel 5.15 as a requirement and currently 1.x has 5.10.
Another option would be 2 AW7916-NPD cards installed with 5 (optional 6th) antennas again not needing diplexers because the cards do the multiplexing themselves.
No telling if/when driver support will show up in OpenWRT/Turris OS though AsiaRF claims Linux drivers exist. Maybe these were used the next-gen Omnias that were made recently? Just guessing!
I tried ordering an AW7916-NPD to try/play with in Omnia and a Linux PC but ended up in backorder limbo so I cancelled. They say they’ll have more end of December. We’ll see!
Come to think of it, do the antennae that come with the Omnia support 6GHz? Or are they only 2.4/5/5.8?
1 Like
Does anyone have antenna recommendations for 6Ghz?
Should I buy 4 of these?
Or even 4 of these:
I just noticed that Turris has updated the web home page showing WiFi 6 version using 4 antennas and AW7915-NP1.
I also saw on github and elsewhere that work is done to add support for the AW-7915-NPD version and the AW7916-NPD into the mt76 openwrt driver for 22.03 branch.
Maybe time to start a "Wifi 6e (AX+) thread?
1 Like

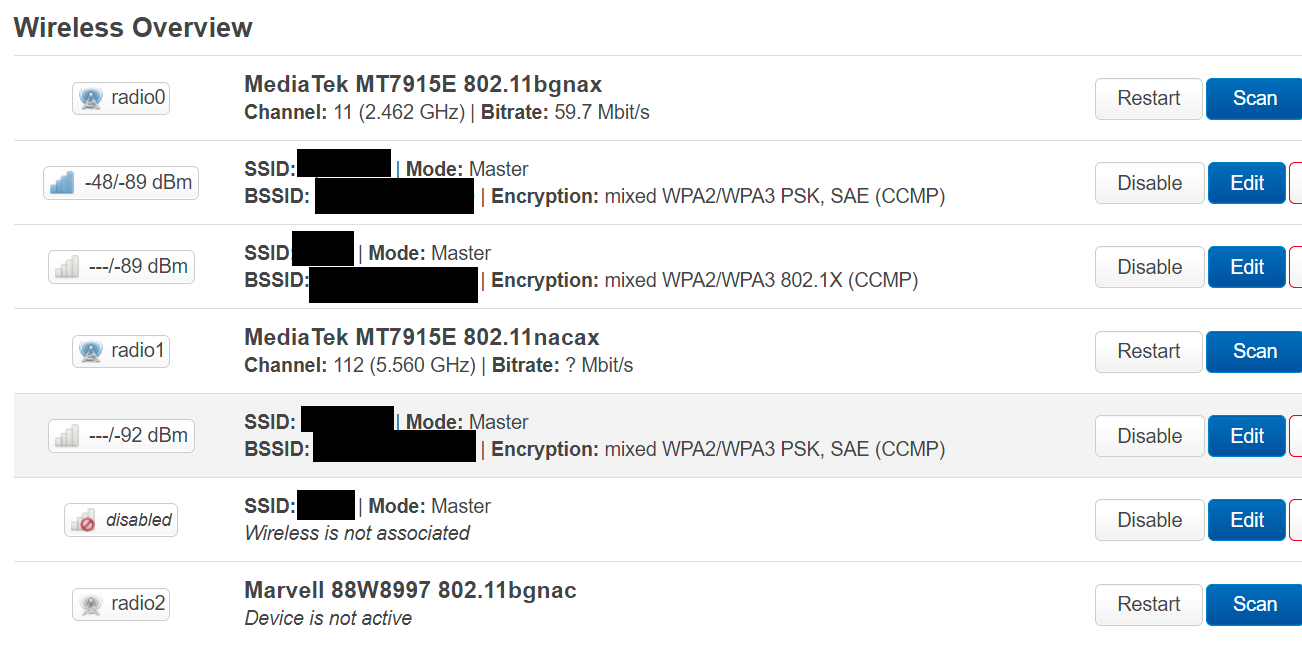

Quick question. I use two AW7915-NP1 cards in my Omnia, but how can I distinguish them now in LuCI?
Once you’ve added a network interface to one of the cards on /luci/admin/network/wireless, it will show the MAC address.
1 Like
Hi I have upgraded my turris MOX to an AsiaRF AW7915-NPD DBDC and TOS 6.0.3, it seems there are some gremlins inside, I am able to setup only 3 SSIDs, 2 on the 2.4Ghz and 1 on the 5Ghz:
For some unknown reason it seems that I am unable to exceed the amount of SSIDs, did someone encounter a similar issue / know of a WA?
Could you post the output of iw list similar to Single Wifi card, both AP and STA? - #4 by gstrauss ? Maybe we could see some limitations of the card from it.
Sure this is the output of the iw list:
Wiphy phy2
wiphy index: 2
max # scan SSIDs: 10
max scan IEs length: 256 bytes
max # sched scan SSIDs: 10
max # match sets: 10
Fragmentation threshold: 2346
RTS threshold: 2347
Retry short limit: 9
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Device supports T-DLS.
Available Antennas: TX 0x7 RX 0x7
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* managed
* AP
* P2P-client
* P2P-GO
Band 1:
Capabilities: 0x2ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 2-streams
Max AMSDU length: 3839 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15, 32
VHT Capabilities (0x33d179b0):
Max MPDU length: 3895
Supported Channel Width: neither 160 nor 80+80
RX LDPC
short GI (80 MHz)
TX STBC
SU Beamformer
SU Beamformee
MU Beamformee
+HTC-VHT
RX antenna pattern consistency
TX antenna pattern consistency
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
Frequencies:
* 2412 MHz [1] (20.0 dBm)
* 2417 MHz [2] (20.0 dBm)
* 2422 MHz [3] (20.0 dBm)
* 2427 MHz [4] (20.0 dBm)
* 2432 MHz [5] (20.0 dBm)
* 2437 MHz [6] (20.0 dBm)
* 2442 MHz [7] (20.0 dBm)
* 2447 MHz [8] (20.0 dBm)
* 2452 MHz [9] (20.0 dBm)
* 2457 MHz [10] (20.0 dBm)
* 2462 MHz [11] (20.0 dBm)
* 2467 MHz [12] (20.0 dBm)
* 2472 MHz [13] (20.0 dBm)
* 2484 MHz [14] (disabled)
Band 2:
Capabilities: 0x2ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 2-streams
Max AMSDU length: 3839 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: No restriction (0x00)
HT TX/RX MCS rate indexes supported: 0-15, 32
VHT Capabilities (0x33d179b0):
Max MPDU length: 3895
Supported Channel Width: neither 160 nor 80+80
RX LDPC
short GI (80 MHz)
TX STBC
SU Beamformer
SU Beamformee
MU Beamformee
+HTC-VHT
RX antenna pattern consistency
TX antenna pattern consistency
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
Frequencies:
* 5040 MHz [8] (disabled)
* 5060 MHz [12] (disabled)
* 5080 MHz [16] (disabled)
* 5170 MHz [34] (23.0 dBm)
* 5190 MHz [38] (23.0 dBm)
* 5210 MHz [42] (23.0 dBm)
* 5230 MHz [46] (23.0 dBm)
* 5180 MHz [36] (23.0 dBm)
* 5200 MHz [40] (23.0 dBm)
* 5220 MHz [44] (23.0 dBm)
* 5240 MHz [48] (23.0 dBm)
* 5260 MHz [52] (23.0 dBm) (no IR, radar detection)
* 5280 MHz [56] (23.0 dBm) (no IR, radar detection)
* 5300 MHz [60] (23.0 dBm) (no IR, radar detection)
* 5320 MHz [64] (23.0 dBm) (no IR, radar detection)
* 5500 MHz [100] (26.0 dBm) (no IR, radar detection)
* 5520 MHz [104] (26.0 dBm) (no IR, radar detection)
* 5540 MHz [108] (26.0 dBm) (no IR, radar detection)
* 5560 MHz [112] (26.0 dBm) (no IR, radar detection)
* 5580 MHz [116] (26.0 dBm) (no IR, radar detection)
* 5600 MHz [120] (26.0 dBm) (no IR, radar detection)
* 5620 MHz [124] (26.0 dBm) (no IR, radar detection)
* 5640 MHz [128] (26.0 dBm) (no IR, radar detection)
* 5660 MHz [132] (26.0 dBm) (no IR, radar detection)
* 5680 MHz [136] (26.0 dBm) (no IR, radar detection)
* 5700 MHz [140] (26.0 dBm) (no IR, radar detection)
* 5745 MHz [149] (23.0 dBm)
* 5765 MHz [153] (23.0 dBm)
* 5785 MHz [157] (23.0 dBm)
* 5805 MHz [161] (23.0 dBm)
* 5825 MHz [165] (23.0 dBm)
valid interface combinations:
* #{ managed, AP, P2P-client, P2P-GO } <= 3,
total <= 3, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz }
max # scan plans: 1
max scan plan interval: -1
max scan plan iterations: 0
Coalesce support:
* Maximum 8 coalesce rules supported
* Each rule contains upto 4 patterns of 1-40 bytes,
maximum packet offset 100 bytes
* Maximum supported coalescing delay 100 msecs
Maximum associated stations in AP mode: 8
Supported extended features:
Wiphy phy1
wiphy index: 1
max # scan SSIDs: 4
max scan IEs length: 2190 bytes
max # sched scan SSIDs: 0
max # match sets: 0
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Device supports T-DLS.
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* IBSS
* managed
* AP
* AP/VLAN
* monitor
* mesh point
* P2P-client
* P2P-GO
Band 2:
Capabilities: 0x9ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: 4 usec (0x05)
HT TX/RX MCS rate indexes supported: 0-15
VHT Capabilities (0x339979b1):
Max MPDU length: 7991
Supported Channel Width: neither 160 nor 80+80
RX LDPC
short GI (80 MHz)
TX STBC
SU Beamformer
SU Beamformee
MU Beamformer
MU Beamformee
RX antenna pattern consistency
TX antenna pattern consistency
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
HE Iftypes: Station
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x5c700e126d00f30e4e3f00):
HE40/HE80/5GHz
HE160/5GHz
HE160/HE80+80/5GHz
242 tone RUs/5GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Beamformee STS > 80Mhz: 3
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
Partial Bandwidth DL MU-MIMO
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
Max NC: 1
20MHz in 40MHz HE PPDU 2.4GHz
20MHz in 160/80+80MHz HE PPDU
80MHz in 160/80+80MHz HE PPDU
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE Iftypes: AP
HE MAC Capabilities (0x00051a081044):
+HTC HE Supported
TWT Responder
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x1c200e926f09af08000c00):
HE40/HE80/5GHz
HE160/5GHz
HE160/HE80+80/5GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformer
SU Beamformee
MU Beamformer
Beamformee STS <= 80Mhz: 3
Beamformee STS > 80Mhz: 3
Sounding Dimensions <= 80Mhz: 1
Sounding Dimensions > 80Mhz: 1
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered SU Beamforming Feedback
Triggered MU Beamforming Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Max NC: 1
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE Iftypes: Mesh
HE MAC Capabilities (0x00011a000040):
+HTC HE Supported
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x1c200c0000000000008000):
HE40/HE80/5GHz
HE160/5GHz
HE160/HE80+80/5GHz
LDPC Coding in Payload
STBC Tx <= 80MHz
STBC Rx <= 80MHz
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
Frequencies:
* 5180 MHz [36] (23.0 dBm)
* 5200 MHz [40] (23.0 dBm)
* 5220 MHz [44] (23.0 dBm)
* 5240 MHz [48] (23.0 dBm)
* 5260 MHz [52] (23.0 dBm) (radar detection)
* 5280 MHz [56] (23.0 dBm) (radar detection)
* 5300 MHz [60] (23.0 dBm) (radar detection)
* 5320 MHz [64] (23.0 dBm) (radar detection)
* 5500 MHz [100] (24.0 dBm) (radar detection)
* 5520 MHz [104] (24.0 dBm) (radar detection)
* 5540 MHz [108] (24.0 dBm) (radar detection)
* 5560 MHz [112] (24.0 dBm) (radar detection)
* 5580 MHz [116] (24.0 dBm) (radar detection)
* 5600 MHz [120] (24.0 dBm) (radar detection)
* 5620 MHz [124] (24.0 dBm) (radar detection)
* 5640 MHz [128] (24.0 dBm) (radar detection)
* 5660 MHz [132] (24.0 dBm) (radar detection)
* 5680 MHz [136] (24.0 dBm) (radar detection)
* 5700 MHz [140] (24.0 dBm) (radar detection)
* 5720 MHz [144] (23.0 dBm) (radar detection)
* 5745 MHz [149] (23.0 dBm)
* 5765 MHz [153] (23.0 dBm)
* 5785 MHz [157] (23.0 dBm)
* 5805 MHz [161] (23.0 dBm)
* 5825 MHz [165] (23.0 dBm)
* 5845 MHz [169] (23.0 dBm)
* 5865 MHz [173] (23.0 dBm)
valid interface combinations:
* #{ IBSS } <= 1, #{ AP, mesh point } <= 16, #{ managed } <= 19,
total <= 19, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
max # scan plans: 1
max scan plan interval: -1
max scan plan iterations: 0
Supported extended features:
* [ VHT_IBSS ]: VHT-IBSS
* [ RRM ]: RRM
* [ BEACON_RATE_LEGACY ]: legacy beacon rate setting
* [ BEACON_RATE_HT ]: HT beacon rate setting
* [ BEACON_RATE_VHT ]: VHT beacon rate setting
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
* [ AQL ]: Airtime Queue Limits (AQL)
* [ SCAN_RANDOM_SN ]: use random sequence numbers in scans
* [ SCAN_MIN_PREQ_CONTENT ]: use probe request with only rate IEs in scans
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ DEL_IBSS_STA ]: deletion of IBSS station support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
Wiphy phy0
wiphy index: 0
max # scan SSIDs: 4
max scan IEs length: 2200 bytes
max # sched scan SSIDs: 0
max # match sets: 0
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports AP-side u-APSD.
Device supports T-DLS.
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* IBSS
* managed
* AP
* AP/VLAN
* monitor
* mesh point
* P2P-client
* P2P-GO
Band 1:
Capabilities: 0x9ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: 4 usec (0x05)
HT TX/RX MCS rate indexes supported: 0-15
HE Iftypes: Station
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x22700e126d00f30e4e3f00):
HE40/2.4GHz
242 tone RUs/2.4GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Beamformee STS > 80Mhz: 3
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
Partial Bandwidth DL MU-MIMO
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
Max NC: 1
20MHz in 40MHz HE PPDU 2.4GHz
20MHz in 160/80+80MHz HE PPDU
80MHz in 160/80+80MHz HE PPDU
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x39 0x1c 0xc7 0x71 0x1c 0x07
HE Iftypes: AP
HE MAC Capabilities (0x00051a081044):
+HTC HE Supported
TWT Responder
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x02200e926f09af08000c00):
HE40/2.4GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformer
SU Beamformee
MU Beamformer
Beamformee STS <= 80Mhz: 3
Beamformee STS > 80Mhz: 3
Sounding Dimensions <= 80Mhz: 1
Sounding Dimensions > 80Mhz: 1
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered SU Beamforming Feedback
Triggered MU Beamforming Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Max NC: 1
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x39 0x1c 0xc7 0x71 0x1c 0x07
HE Iftypes: Mesh
HE MAC Capabilities (0x00011a000040):
+HTC HE Supported
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x02200c0000000000008000):
HE40/2.4GHz
LDPC Coding in Payload
STBC Tx <= 80MHz
STBC Rx <= 80MHz
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
Frequencies:
* 2412 MHz [1] (20.0 dBm)
* 2417 MHz [2] (20.0 dBm)
* 2422 MHz [3] (20.0 dBm)
* 2427 MHz [4] (20.0 dBm)
* 2432 MHz [5] (20.0 dBm)
* 2437 MHz [6] (20.0 dBm)
* 2442 MHz [7] (20.0 dBm)
* 2447 MHz [8] (20.0 dBm)
* 2452 MHz [9] (20.0 dBm)
* 2457 MHz [10] (20.0 dBm)
* 2462 MHz [11] (20.0 dBm)
* 2467 MHz [12] (20.0 dBm)
* 2472 MHz [13] (20.0 dBm)
* 2484 MHz [14] (disabled)
valid interface combinations:
* #{ IBSS } <= 1, #{ AP, mesh point } <= 16, #{ managed } <= 19,
total <= 19, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
max # scan plans: 1
max scan plan interval: -1
max scan plan iterations: 0
Supported extended features:
* [ VHT_IBSS ]: VHT-IBSS
* [ RRM ]: RRM
* [ BEACON_RATE_LEGACY ]: legacy beacon rate setting
* [ BEACON_RATE_HT ]: HT beacon rate setting
* [ BEACON_RATE_VHT ]: VHT beacon rate setting
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
* [ AQL ]: Airtime Queue Limits (AQL)
* [ SCAN_RANDOM_SN ]: use random sequence numbers in scans
* [ SCAN_MIN_PREQ_CONTENT ]: use probe request with only rate IEs in scans
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ DEL_IBSS_STA ]: deletion of IBSS station support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
I replaced the original Compex radio modules with two AW7915-NPD modules from 524wifi in my Turris Omnia and they seem to run fine. These are two 2T2R DBDC modules so I’m able to set up two 2.4 GHz and two 5 GHz networks, for a total of four wireless networks, using only 4 antennas with no external diplexers.
On the 7915 modules with Debian kernel 6.0.10 the 5 GHz network is about half as fast as on kernel 6.1-rc6. So there is some patch in the mt76 driver that was merged for 6.1 that you need, otherwise the 7915 on the 5 GHz band is slower than the Compex WLE900VX (for me ~200 Mbps or less in 802.11ax mode vs. ~400 Mbps on the WLE900VX in 802.11ac mode). The throughput/range using 802.11ax mode on the 2.4 GHz band is much improved versus the original Compex WLE200N2 module.
Then, I replaced one of the AW7915-NPD modules with an AW7916-NPD module from AsiaRF and moved my hostapd configs for the previous AW7915-NPD module over to the 7916. The 7916 is supposed to be a tri-band dual band concurrent card that can run 2.4 GHz and either 5 GHz or 6 GHz at the same time. I can run a 2.4 GHz network on the 7916 just fine, but it won’t run a 5 GHz network at all. I did not try to get 6 GHz working on the 7916 since I don’t have an example of a working hostapd.conf and all the 6 GHz channels are showing as “no IR” for some reason.
On the 7916 hostapd starts up just fine but I can’t see the 5 GHz network at all (tried 3 different client devices sitting right next to the Omnia; one Android, one ChromeOS, one Debian). No diplexers, just three pigtails and three Taoglas GW.59.3153 2.4/5.8/7.1 GHz antennas connected directly to the card. And the 7916 card works for the 2.4 GHz network so I’m pretty sure I didn’t mess up the RF and antenna connections.
My Turris Omnia is running Debian bullseye with:
-
linux-image-6.1.0-0-armmp(6.1~rc6-1~exp1) from experimental. - Mediatek 7915/7916 firmware from linux-firmware.git (commit
cdf9499cf6706b73935a139bb5e76777a87674fe) -
wireless-regdb(2022.06.06-1) from unstable -
hostapdcompiled from source (commit8de288142638f1d56ef9278057cdb5263945c163) withCONFIG_IEEE80211AX=y
So my conclusion is the AW7915-NPD is usable if your kernel/firmware/hostapd are very up-to-date, but I’m not sure how to get the AW7916-NPD working. I see the 7916 listed on FAQ - Turris Documentation though, so I’m curious how the Turris team got this card working.
The only thing weird about my Turris Omnia hardware-wise is that it’s an original Indiegogo model with a Kingston SMS200S3120G mSATA SSD installed in the rightmost mini PCIE slot.
Here are the kernel messages when loading the driver:
mt7915e 0000:02:00.0: firmware: direct-loading firmware mediatek/mt7916_rom_patch.bin
mt7915e 0000:02:00.0: HW/SW Version: 0x8a108a10, Build Time: 20221031154652a
mt7915e 0000:02:00.0: firmware: direct-loading firmware mediatek/mt7916_wm.bin
mt7915e 0000:02:00.0: WM Firmware Version: ____000000, Build Time: 20221031154713
mt7915e 0000:02:00.0: firmware: direct-loading firmware mediatek/mt7916_wa.bin
mt7915e 0000:02:00.0: WA Firmware Version: DEV_000000, Build Time: 20221031154757
mt7915e 0000:03:00.0: firmware: direct-loading firmware mediatek/mt7915_rom_patch.bin
mt7915e 0000:03:00.0: HW/SW Version: 0x8a108a10, Build Time: 20220929104113a
mt7915e 0000:03:00.0: firmware: direct-loading firmware mediatek/mt7915_wm.bin
mt7915e 0000:03:00.0: WM Firmware Version: ____000000, Build Time: 20220929104145
mt7915e 0000:03:00.0: firmware: direct-loading firmware mediatek/mt7915_wa.bin
mt7915e 0000:03:00.0: WA Firmware Version: DEV_000000, Build Time: 20220929104205
Here’s the hostapd.conf for the 5 GHz network. Works on the 7915, doesn’t work on the 7916:
driver=nl80211
logger_syslog=127
logger_syslog_level=2
country_code=US
ieee80211d=1
ieee80211h=1
ieee80211n=1
ieee80211ac=1
ieee80211ax=1
ieee80211w=1
sae_require_mfp=1
hw_mode=a
channel=149
ht_capab=[GF][HT40+][HT40-][LDPC][MAX-AMSDU-7935][RX-STBC1][RXLDPC][SHORT-GI-20][SHORT-GI-40][TX-STBC]
vht_oper_chwidth=1
vht_oper_centr_freq_seg0_idx=155
vht_capab=[MAX-A-MPDU-LEN-EXP3][MAX-MPDU-7991][MU-BEAMFORMEE][MU-BEAMFORMER][RX-ANTENNA-PATTERN][RX-STBC-1][RXLDPC][SHORT-GI-80][SU-BEAMFORMEE][SU-BEAMFORMER][TX-ANTENNA-PATTERN][TX-STBC-2BY1]
he_su_beamformee=1
he_su_beamformer=1
he_mu_beamformer=1
he_basic_mcs_nss_set=2
he_oper_chwidth=1
he_oper_centr_freq_seg0_idx=155
interface=wl_mtk7916_0_p1
ctrl_interface=/run/hostapd.wl_mtk7916_0_p1
disassoc_low_ack=0
preamble=1
wmm_enabled=1
ignore_broadcast_ssid=0
uapsd_advertisement_enabled=1
wpa_passphrase=…
auth_algs=1
wpa=2
wpa_pairwise=CCMP
ssid=ssid6
bridge=br-vlan101
wpa_key_mgmt=WPA-PSK WPA-PSK-SHA256 SAE
When hostapd is running:
root@turris:~# iw dev wl_mtk7916_0_p1 info
Interface wl_mtk7916_0_p1
ifindex 11
wdev 0x100000001
addr 00:0a:52:07:f5:29
ssid ssid6
type AP
wiphy 1
channel 149 (5745 MHz), width: 80 MHz, center1: 5775 MHz
txpower 29.00 dBm
multicast TXQ:
qsz-byt qsz-pkt flows drops marks overlmt hashcol tx-bytes tx-packets
0 0 0 0 0 0 0 0 0
root@turris:~# hostapd_cli -p /run/hostapd.wl_mtk7916_0_p1 status
Selected interface 'wl_mtk7916_0_p1'
state=ENABLED
phy=phy1
freq=5745
num_sta_non_erp=0
num_sta_no_short_slot_time=0
num_sta_no_short_preamble=0
olbc=0
num_sta_ht_no_gf=0
num_sta_no_ht=0
num_sta_ht_20_mhz=0
num_sta_ht40_intolerant=0
olbc_ht=0
ht_op_mode=0x0
cac_time_seconds=0
cac_time_left_seconds=N/A
channel=149
edmg_enable=0
edmg_channel=0
secondary_channel=1
ieee80211n=1
ieee80211ac=1
ieee80211ax=1
ieee80211be=0
beacon_int=100
dtim_period=2
he_oper_chwidth=1
he_oper_centr_freq_seg0_idx=155
he_oper_centr_freq_seg1_idx=0
vht_oper_chwidth=1
vht_oper_centr_freq_seg0_idx=155
vht_oper_centr_freq_seg1_idx=0
vht_caps_info=318819b1
rx_vht_mcs_map=fffa
tx_vht_mcs_map=fffa
ht_caps_info=09ff
ht_mcs_bitmask=ffff0000000000000000
supported_rates=0c 12 18 24 30 48 60 6c
max_txpower=30
bss[0]=wl_mtk7916_0_p1
bssid[0]=00:0a:52:07:f5:29
ssid[0]=ssid6
num_sta[0]=0
root@turris:~#
Here is the iw phy info for the 5 GHz/6 GHz phy on the 7916 card:
wiphy index: 1
max # scan SSIDs: 4
max scan IEs length: 2190 bytes
max # sched scan SSIDs: 0
max # match sets: 0
Retry short limit: 7
Retry long limit: 4
Coverage class: 0 (up to 0m)
Device supports RSN-IBSS.
Device supports AP-side u-APSD.
Device supports T-DLS.
Supported Ciphers:
* WEP40 (00-0f-ac:1)
* WEP104 (00-0f-ac:5)
* TKIP (00-0f-ac:2)
* CCMP-128 (00-0f-ac:4)
* CCMP-256 (00-0f-ac:10)
* GCMP-128 (00-0f-ac:8)
* GCMP-256 (00-0f-ac:9)
* CMAC (00-0f-ac:6)
* CMAC-256 (00-0f-ac:13)
* GMAC-128 (00-0f-ac:11)
* GMAC-256 (00-0f-ac:12)
Available Antennas: TX 0x3 RX 0x3
Configured Antennas: TX 0x3 RX 0x3
Supported interface modes:
* IBSS
* managed
* AP
* AP/VLAN
* monitor
* mesh point
* P2P-client
* P2P-GO
Band 2:
Capabilities: 0x9ff
RX LDPC
HT20/HT40
SM Power Save disabled
RX Greenfield
RX HT20 SGI
RX HT40 SGI
TX STBC
RX STBC 1-stream
Max AMSDU length: 7935 bytes
No DSSS/CCK HT40
Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
Minimum RX AMPDU time spacing: 4 usec (0x05)
HT TX/RX MCS rate indexes supported: 0-15
VHT Capabilities (0x339a79f6):
Max MPDU length: 11454
Supported Channel Width: 160 MHz
RX LDPC
short GI (80 MHz)
short GI (160/80+80 MHz)
TX STBC
SU Beamformer
SU Beamformee
MU Beamformer
MU Beamformee
RX antenna pattern consistency
TX antenna pattern consistency
VHT RX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT RX highest supported: 0 Mbps
VHT TX MCS set:
1 streams: MCS 0-9
2 streams: MCS 0-9
3 streams: not supported
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
VHT TX highest supported: 0 Mbps
HE Iftypes: Station
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x5c70ce126d00f3164e3f00):
HE40/HE80/5GHz
HE160/5GHz
HE160/HE80+80/5GHz
242 tone RUs/5GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Beamformee STS > 80Mhz: 3
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
Partial Bandwidth DL MU-MIMO
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
Max NC: 2
20MHz in 40MHz HE PPDU 2.4GHz
20MHz in 160/80+80MHz HE PPDU
80MHz in 160/80+80MHz HE PPDU
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x3a 0x1c 0xc7 0x71 0x1c 0xc7 0x71 0x1c
HE Iftypes: AP
HE MAC Capabilities (0x00051a081044):
+HTC HE Supported
TWT Responder
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x1c20ce926f12afd0000c00):
HE40/HE80/5GHz
HE160/5GHz
HE160/HE80+80/5GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformer
SU Beamformee
MU Beamformer
Beamformee STS <= 80Mhz: 3
Beamformee STS > 80Mhz: 3
Sounding Dimensions <= 80Mhz: 2
Sounding Dimensions > 80Mhz: 2
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered SU Beamforming Feedback
Triggered MU Beamforming Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Max NC: 2
STBC Tx > 80MHz
STBC Rx > 80MHz
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x3a 0x1c 0xc7 0x71 0x1c 0xc7 0x71 0x1c
HE Iftypes: Mesh
HE MAC Capabilities (0x00011a000040):
+HTC HE Supported
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x1c200c0000000000008000):
HE40/HE80/5GHz
HE160/5GHz
HE160/HE80+80/5GHz
LDPC Coding in Payload
STBC Tx <= 80MHz
STBC Rx <= 80MHz
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
Bitrates (non-HT):
* 6.0 Mbps
* 9.0 Mbps
* 12.0 Mbps
* 18.0 Mbps
* 24.0 Mbps
* 36.0 Mbps
* 48.0 Mbps
* 54.0 Mbps
Frequencies:
* 5180 MHz [36] (23.0 dBm)
* 5200 MHz [40] (23.0 dBm)
* 5220 MHz [44] (23.0 dBm)
* 5240 MHz [48] (23.0 dBm)
* 5260 MHz [52] (24.0 dBm) (radar detection)
* 5280 MHz [56] (24.0 dBm) (radar detection)
* 5300 MHz [60] (24.0 dBm) (radar detection)
* 5320 MHz [64] (24.0 dBm) (radar detection)
* 5500 MHz [100] (24.0 dBm) (radar detection)
* 5520 MHz [104] (24.0 dBm) (radar detection)
* 5540 MHz [108] (24.0 dBm) (radar detection)
* 5560 MHz [112] (24.0 dBm) (radar detection)
* 5580 MHz [116] (24.0 dBm) (radar detection)
* 5600 MHz [120] (24.0 dBm) (radar detection)
* 5620 MHz [124] (24.0 dBm) (radar detection)
* 5640 MHz [128] (24.0 dBm) (radar detection)
* 5660 MHz [132] (24.0 dBm) (radar detection)
* 5680 MHz [136] (24.0 dBm) (radar detection)
* 5700 MHz [140] (24.0 dBm) (radar detection)
* 5720 MHz [144] (24.0 dBm) (radar detection)
* 5745 MHz [149] (29.0 dBm)
* 5765 MHz [153] (29.0 dBm)
* 5785 MHz [157] (29.0 dBm)
* 5805 MHz [161] (29.0 dBm)
* 5825 MHz [165] (29.0 dBm)
* 5845 MHz [169] (27.0 dBm) (no IR)
* 5865 MHz [173] (27.0 dBm) (no IR)
Band 4:
HE Iftypes: Station
HE MAC Capabilities (0x08011a000040):
+HTC HE Supported
Trigger Frame MAC Padding Duration: 2
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x5c70ce126d00f3164e3f00):
HE40/HE80/5GHz
HE160/5GHz
HE160/HE80+80/5GHz
242 tone RUs/5GHz
Device Class: 1
LDPC Coding in Payload
HE SU PPDU with 1x HE-LTF and 0.8us GI
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformee
Beamformee STS <= 80Mhz: 3
Beamformee STS > 80Mhz: 3
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered CQI Feedback
Partial Bandwidth Extended Range
Partial Bandwidth DL MU-MIMO
PPE Threshold Present
Power Boost Factor ar
HE SU PPDU & HE PPDU 4x HE-LTF 0.8us GI
Max NC: 2
20MHz in 40MHz HE PPDU 2.4GHz
20MHz in 160/80+80MHz HE PPDU
80MHz in 160/80+80MHz HE PPDU
DCM Max BW: 1
Longer Than 16HE SIG-B OFDM Symbols
Non-Triggered CQI Feedback
TX 1024-QAM
RX 1024-QAM
RX Full BW SU Using HE MU PPDU with Compression SIGB
RX Full BW SU Using HE MU PPDU with Non-Compression SIGB
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x3a 0x1c 0xc7 0x71 0x1c 0xc7 0x71 0x1c
HE Iftypes: AP
HE MAC Capabilities (0x00051a081044):
+HTC HE Supported
TWT Responder
BSR
OM Control
Maximum A-MPDU Length Exponent: 3
BQR
A-MSDU in A-MPDU
OM Control UL MU Data Disable RX
HE PHY Capabilities: (0x1c20ce926f12afd0000c00):
HE40/HE80/5GHz
HE160/5GHz
HE160/HE80+80/5GHz
LDPC Coding in Payload
NDP with 4x HE-LTF and 3.2us GI
STBC Tx <= 80MHz
STBC Rx <= 80MHz
Full Bandwidth UL MU-MIMO
Partial Bandwidth UL MU-MIMO
DCM Max Constellation: 2
DCM Max Constellation Rx: 2
SU Beamformer
SU Beamformee
MU Beamformer
Beamformee STS <= 80Mhz: 3
Beamformee STS > 80Mhz: 3
Sounding Dimensions <= 80Mhz: 2
Sounding Dimensions > 80Mhz: 2
Codebook Size SU Feedback
Codebook Size MU Feedback
Triggered SU Beamforming Feedback
Triggered MU Beamforming Feedback
Partial Bandwidth Extended Range
PPE Threshold Present
Max NC: 2
STBC Tx > 80MHz
STBC Rx > 80MHz
TX 1024-QAM
RX 1024-QAM
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
PPE Threshold 0x3a 0x1c 0xc7 0x71 0x1c 0xc7 0x71 0x1c
HE Iftypes: Mesh
HE MAC Capabilities (0x00011a000040):
+HTC HE Supported
OM Control
Maximum A-MPDU Length Exponent: 3
A-MSDU in A-MPDU
HE PHY Capabilities: (0x1c200c0000000000008000):
HE40/HE80/5GHz
HE160/5GHz
HE160/HE80+80/5GHz
LDPC Coding in Payload
STBC Tx <= 80MHz
STBC Rx <= 80MHz
HE RX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set <= 80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 160 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE RX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
HE TX MCS and NSS set 80+80 MHz
1 streams: MCS 0-11
2 streams: MCS 0-11
3 streams: MCS 0-11
4 streams: not supported
5 streams: not supported
6 streams: not supported
7 streams: not supported
8 streams: not supported
Bitrates (non-HT):
* 6.0 Mbps
* 9.0 Mbps
* 12.0 Mbps
* 18.0 Mbps
* 24.0 Mbps
* 36.0 Mbps
* 48.0 Mbps
* 54.0 Mbps
Frequencies:
* 5955 MHz [1] (12.0 dBm) (no IR)
* 5975 MHz [5] (12.0 dBm) (no IR)
* 5995 MHz [9] (12.0 dBm) (no IR)
* 6015 MHz [13] (12.0 dBm) (no IR)
* 6035 MHz [17] (12.0 dBm) (no IR)
* 6055 MHz [21] (12.0 dBm) (no IR)
* 6075 MHz [25] (12.0 dBm) (no IR)
* 6095 MHz [29] (12.0 dBm) (no IR)
* 6115 MHz [33] (12.0 dBm) (no IR)
* 6135 MHz [37] (12.0 dBm) (no IR)
* 6155 MHz [41] (12.0 dBm) (no IR)
* 6175 MHz [45] (12.0 dBm) (no IR)
* 6195 MHz [49] (12.0 dBm) (no IR)
* 6215 MHz [53] (12.0 dBm) (no IR)
* 6235 MHz [57] (12.0 dBm) (no IR)
* 6255 MHz [61] (12.0 dBm) (no IR)
* 6275 MHz [65] (12.0 dBm) (no IR)
* 6295 MHz [69] (12.0 dBm) (no IR)
* 6315 MHz [73] (12.0 dBm) (no IR)
* 6335 MHz [77] (12.0 dBm) (no IR)
* 6355 MHz [81] (12.0 dBm) (no IR)
* 6375 MHz [85] (12.0 dBm) (no IR)
* 6395 MHz [89] (12.0 dBm) (no IR)
* 6415 MHz [93] (12.0 dBm) (no IR)
* 6435 MHz [97] (12.0 dBm) (no IR)
* 6455 MHz [101] (12.0 dBm) (no IR)
* 6475 MHz [105] (12.0 dBm) (no IR)
* 6495 MHz [109] (12.0 dBm) (no IR)
* 6515 MHz [113] (12.0 dBm) (no IR)
* 6535 MHz [117] (12.0 dBm) (no IR)
* 6555 MHz [121] (12.0 dBm) (no IR)
* 6575 MHz [125] (12.0 dBm) (no IR)
* 6595 MHz [129] (12.0 dBm) (no IR)
* 6615 MHz [133] (12.0 dBm) (no IR)
* 6635 MHz [137] (12.0 dBm) (no IR)
* 6655 MHz [141] (12.0 dBm) (no IR)
* 6675 MHz [145] (12.0 dBm) (no IR)
* 6695 MHz [149] (12.0 dBm) (no IR)
* 6715 MHz [153] (12.0 dBm) (no IR)
* 6735 MHz [157] (12.0 dBm) (no IR)
* 6755 MHz [161] (12.0 dBm) (no IR)
* 6775 MHz [165] (12.0 dBm) (no IR)
* 6795 MHz [169] (12.0 dBm) (no IR)
* 6815 MHz [173] (12.0 dBm) (no IR)
* 6835 MHz [177] (12.0 dBm) (no IR)
* 6855 MHz [181] (12.0 dBm) (no IR)
* 6875 MHz [185] (12.0 dBm) (no IR)
* 6895 MHz [189] (12.0 dBm) (no IR)
* 6915 MHz [193] (12.0 dBm) (no IR)
* 6935 MHz [197] (12.0 dBm) (no IR)
* 6955 MHz [201] (12.0 dBm) (no IR)
* 6975 MHz [205] (12.0 dBm) (no IR)
* 6995 MHz [209] (12.0 dBm) (no IR)
* 7015 MHz [213] (12.0 dBm) (no IR)
* 7035 MHz [217] (12.0 dBm) (no IR)
* 7055 MHz [221] (12.0 dBm) (no IR)
* 7075 MHz [225] (12.0 dBm) (no IR)
* 7095 MHz [229] (12.0 dBm) (no IR)
* 7115 MHz [233] (12.0 dBm) (no IR)
Supported commands:
* new_interface
* set_interface
* new_key
* start_ap
* new_station
* new_mpath
* set_mesh_config
* set_bss
* authenticate
* associate
* deauthenticate
* disassociate
* join_ibss
* join_mesh
* remain_on_channel
* set_tx_bitrate_mask
* frame
* frame_wait_cancel
* set_wiphy_netns
* set_channel
* tdls_mgmt
* tdls_oper
* probe_client
* set_noack_map
* register_beacons
* start_p2p_device
* set_mcast_rate
* connect
* disconnect
* channel_switch
* set_qos_map
* set_multicast_to_unicast
* Unknown command (140)
software interface modes (can always be added):
* AP/VLAN
* monitor
valid interface combinations:
* #{ IBSS } <= 1, #{ AP, mesh point } <= 16, #{ managed } <= 19,
total <= 19, #channels <= 1, STA/AP BI must match, radar detect widths: { 20 MHz (no HT), 20 MHz, 40 MHz, 80 MHz, 80+80 MHz, 160 MHz }
HT Capability overrides:
* MCS: ff ff ff ff ff ff ff ff ff ff
* maximum A-MSDU length
* supported channel width
* short GI for 40 MHz
* max A-MPDU length exponent
* min MPDU start spacing
Device supports TX status socket option.
Device supports HT-IBSS.
Device supports SAE with AUTHENTICATE command
Device supports low priority scan.
Device supports scan flush.
Device supports AP scan.
Device supports per-vif TX power setting
Driver supports full state transitions for AP/GO clients
Driver supports a userspace MPM
Device supports active monitor (which will ACK incoming frames)
Device supports configuring vdev MAC-addr on create.
max # scan plans: 1
max scan plan interval: -1
max scan plan iterations: 0
Supported TX frame types:
* IBSS: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* managed: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* AP: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* AP/VLAN: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* mesh point: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* P2P-client: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* P2P-GO: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
* P2P-device: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
Supported RX frame types:
* IBSS: 0x40 0xb0 0xc0 0xd0
* managed: 0x40 0xb0 0xd0
* AP: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
* AP/VLAN: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
* mesh point: 0xb0 0xc0 0xd0
* P2P-client: 0x40 0xd0
* P2P-GO: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
* P2P-device: 0x40 0xd0
Supported extended features:
* [ VHT_IBSS ]: VHT-IBSS
* [ RRM ]: RRM
* [ BEACON_RATE_LEGACY ]: legacy beacon rate setting
* [ BEACON_RATE_HT ]: HT beacon rate setting
* [ BEACON_RATE_VHT ]: VHT beacon rate setting
* [ FILS_STA ]: STA FILS (Fast Initial Link Setup)
* [ CQM_RSSI_LIST ]: multiple CQM_RSSI_THOLD records
* [ CONTROL_PORT_OVER_NL80211 ]: control port over nl80211
* [ TXQS ]: FQ-CoDel-enabled intermediate TXQs
* [ AIRTIME_FAIRNESS ]: airtime fairness scheduling
* [ AQL ]: Airtime Queue Limits (AQL)
* [ SCAN_RANDOM_SN ]: use random sequence numbers in scans
* [ SCAN_MIN_PREQ_CONTENT ]: use probe request with only rate IEs in scans
* [ CONTROL_PORT_NO_PREAUTH ]: disable pre-auth over nl80211 control port support
* [ DEL_IBSS_STA ]: deletion of IBSS station support
* [ SCAN_FREQ_KHZ ]: scan on kHz frequency support
* [ CONTROL_PORT_OVER_NL80211_TX_STATUS ]: tx status for nl80211 control port support
Here is the iw reg get output:
root@turris:~# iw reg get
global
country US: DFS-FCC
(902 - 904 @ 2), (N/A, 30), (N/A)
(904 - 920 @ 16), (N/A, 30), (N/A)
(920 - 928 @ 8), (N/A, 30), (N/A)
(2400 - 2472 @ 40), (N/A, 30), (N/A)
(5150 - 5250 @ 80), (N/A, 23), (N/A), AUTO-BW
(5250 - 5350 @ 80), (N/A, 24), (0 ms), DFS, AUTO-BW
(5470 - 5730 @ 160), (N/A, 24), (0 ms), DFS
(5730 - 5850 @ 80), (N/A, 30), (N/A), AUTO-BW
(5850 - 5895 @ 40), (N/A, 27), (N/A), NO-OUTDOOR, AUTO-BW, PASSIVE-SCAN
(5925 - 7125 @ 320), (N/A, 12), (N/A), NO-OUTDOOR, PASSIVE-SCAN
(57240 - 71000 @ 2160), (N/A, 40), (N/A)
4 Likes
Looks like my kernel is missing this patch:
Not sure if not having this patch is the cause of my problem with the 7916 card, though.
Thanks a lot for sharing this information here. I wonder if mentioned latest kernel patch for mt7915 could be backported by team into current 5.15.78 kernel ? For mt7916 further development probably has to be made in future to make it working.
We already have this patch since Turris OS 6.0.0.
3 Likes
OK, I pulled out the mSATA card with my Debian installation on it and flashed the latest medkit onto the eMMC and installed TurrisOS 6. Then I updated to hbk and installed the kmod-mt7916-firmware package. Also I ran nor-update to flash the boot loader.
This works great now, the 5 GHz band on the 7916 card is working and I can get around 600-700 Mbps with 160 MHz channel width. Also, the 7915 card seems to be faster as well (400-500 Mbps).
I don’t see any way to use the 6e channels, though. They are showing up as “no IR” in iw phy and there are some weird diagnostics logged by foris-controller when I open the Wi-Fi settings in the web interface.
iw reg get:
global
country US: DFS-FCC
(902 - 904 @ 2), (N/A, 30), (N/A)
(904 - 920 @ 16), (N/A, 30), (N/A)
(920 - 928 @ 8), (N/A, 30), (N/A)
(2400 - 2472 @ 40), (N/A, 30), (N/A)
(5150 - 5250 @ 80), (N/A, 23), (N/A), AUTO-BW
(5250 - 5350 @ 80), (N/A, 24), (0 ms), DFS, AUTO-BW
(5470 - 5730 @ 160), (N/A, 24), (0 ms), DFS
(5730 - 5850 @ 80), (N/A, 30), (N/A), AUTO-BW
(5850 - 5895 @ 40), (N/A, 27), (N/A), NO-OUTDOOR, AUTO-BW, PASSIVE-SCAN
(5925 - 7125 @ 320), (N/A, 12), (N/A), NO-OUTDOOR, PASSIVE-SCAN
(57240 - 71000 @ 2160), (N/A, 40), (N/A)
iw phy:
Frequencies:
* 5955 MHz [1] (12.0 dBm) (no IR)
* 5975 MHz [5] (12.0 dBm) (no IR)
* 5995 MHz [9] (12.0 dBm) (no IR)
* 6015 MHz [13] (12.0 dBm) (no IR)
* 6035 MHz [17] (12.0 dBm) (no IR)
* 6055 MHz [21] (12.0 dBm) (no IR)
* 6075 MHz [25] (12.0 dBm) (no IR)
* 6095 MHz [29] (12.0 dBm) (no IR)
* 6115 MHz [33] (12.0 dBm) (no IR)
* 6135 MHz [37] (12.0 dBm) (no IR)
* 6155 MHz [41] (12.0 dBm) (no IR)
* 6175 MHz [45] (12.0 dBm) (no IR)
* 6195 MHz [49] (12.0 dBm) (no IR)
* 6215 MHz [53] (12.0 dBm) (no IR)
* 6235 MHz [57] (12.0 dBm) (no IR)
* 6255 MHz [61] (12.0 dBm) (no IR)
* 6275 MHz [65] (12.0 dBm) (no IR)
* 6295 MHz [69] (12.0 dBm) (no IR)
* 6315 MHz [73] (12.0 dBm) (no IR)
* 6335 MHz [77] (12.0 dBm) (no IR)
* 6355 MHz [81] (12.0 dBm) (no IR)
* 6375 MHz [85] (12.0 dBm) (no IR)
* 6395 MHz [89] (12.0 dBm) (no IR)
* 6415 MHz [93] (12.0 dBm) (no IR)
* 6435 MHz [97] (12.0 dBm) (no IR)
* 6455 MHz [101] (12.0 dBm) (no IR)
* 6475 MHz [105] (12.0 dBm) (no IR)
* 6495 MHz [109] (12.0 dBm) (no IR)
* 6515 MHz [113] (12.0 dBm) (no IR)
* 6535 MHz [117] (12.0 dBm) (no IR)
* 6555 MHz [121] (12.0 dBm) (no IR)
* 6575 MHz [125] (12.0 dBm) (no IR)
* 6595 MHz [129] (12.0 dBm) (no IR)
* 6615 MHz [133] (12.0 dBm) (no IR)
* 6635 MHz [137] (12.0 dBm) (no IR)
* 6655 MHz [141] (12.0 dBm) (no IR)
* 6675 MHz [145] (12.0 dBm) (no IR)
* 6695 MHz [149] (12.0 dBm) (no IR)
* 6715 MHz [153] (12.0 dBm) (no IR)
* 6735 MHz [157] (12.0 dBm) (no IR)
* 6755 MHz [161] (12.0 dBm) (no IR)
* 6775 MHz [165] (12.0 dBm) (no IR)
* 6795 MHz [169] (12.0 dBm) (no IR)
* 6815 MHz [173] (12.0 dBm) (no IR)
* 6835 MHz [177] (12.0 dBm) (no IR)
* 6855 MHz [181] (12.0 dBm) (no IR)
* 6875 MHz [185] (12.0 dBm) (no IR)
* 6895 MHz [189] (12.0 dBm) (no IR)
* 6915 MHz [193] (12.0 dBm) (no IR)
* 6935 MHz [197] (12.0 dBm) (no IR)
* 6955 MHz [201] (12.0 dBm) (no IR)
* 6975 MHz [205] (12.0 dBm) (no IR)
* 6995 MHz [209] (12.0 dBm) (no IR)
* 7015 MHz [213] (12.0 dBm) (no IR)
* 7035 MHz [217] (12.0 dBm) (no IR)
* 7055 MHz [221] (12.0 dBm) (no IR)
* 7075 MHz [225] (12.0 dBm) (no IR)
* 7095 MHz [229] (12.0 dBm) (no IR)
* 7115 MHz [233] (12.0 dBm) (no IR)
/var/log/messages:
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '5995 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6015 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6035 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6055 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6075 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6095 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6115 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6135 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6155 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6175 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6195 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6215 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6235 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6255 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6275 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6295 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6315 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6335 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6355 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6375 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6395 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6415 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6435 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6455 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6475 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6495 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6515 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6535 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6555 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6575 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6595 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6615 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6635 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6655 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6675 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6695 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6715 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6735 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6755 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6775 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6795 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6815 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6835 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6855 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6875 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6895 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6915 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6935 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6955 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6975 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '6995 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '7015 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '7035 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '7055 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '7075 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '7095 MHz' does not fit supported bands (2.4 & 5 GHz)
Dec 4 05:40:11 turris foris-controller[3466]: WARNING:foris_controller_backends.wifi:radio3: Frequency '7115 MHz' does not fit supported bands (2.4 & 5 GHz)
Any advice on 6Ghz antennas?
1 Like
I’m shopping for 6E antennae! Currently I’ve found Wallys DRA24126ESBE on Ali Express for moderately high prices but exhorbitant shipping! Also there are ANT-W63WS5-RPS from Mouser and others which are probably the better option when they come into stock here in the US at least.
1 Like
