Qualcomm QCN90X4 WIFI6 and WIFI6E minipcie card

Omnia hardware Omnia HW tweaks
1

I found this recently on aliexpress and it according to specificactions it
has Qualcomm Atheros QCN90X4 here QCN9074 and QCN9024 and I wonder if this chipset is already supported by openwrt or linux in general.

For now it is quite expensive and team will probably say that Turris is not supporting it now but anyway. I am quite happy with AsiaRF cards but remember Qualcomm Atheros chipsets had stronger signal before.

I use AsiaRF cards in my omnia and get upgrade kits also for Turris 1X.

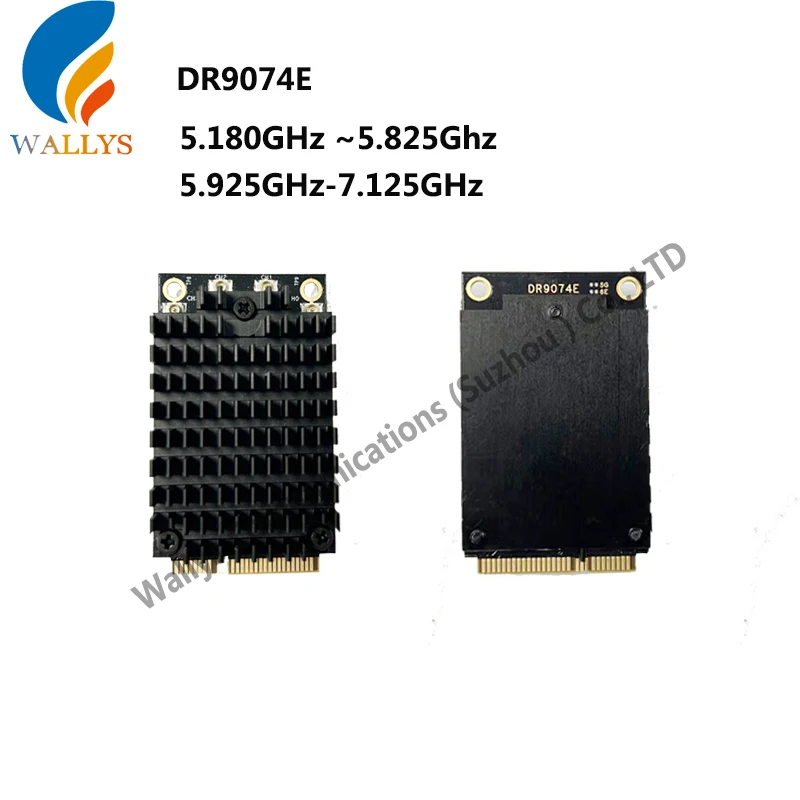

Wallys-DR9074E-Qualcomm-QCN9074-QCN9024-WiFi6-and-WiFi6E-4-4-MU-MIMO-Dual-Band-WiFi-Module.jpg_Q90.jpg_
Wallys-DR9074E-Qualcomm-QCN9074-QCN9024-WiFi6-and-WiFi6E-4-4-MU-MIMO-Dual-Band-WiFi-Module.jpg_Q90.jpg_800×800 22.5 KB

Wallys-DR9074E-Qualcomm-QCN9074-QCN9024-WiFi6-and-WiFi6E-4-4-MU-MIMO-Dual-Band-WiFi-Module.jpg_Q90.jpg_ (1)
Wallys-DR9074E-Qualcomm-QCN9074-QCN9024-WiFi6-and-WiFi6E-4-4-MU-MIMO-Dual-Band-WiFi-Module.jpg_Q90.jpg_ (1)800×800 19.5 KB

2

If I am not mistaken this are going to be supported by ath11k driver which is currently in testing phase. You could compile your own kernel with some additional patches and you are going to be able to select kmod-ath11k. I am waing until its supported in OpenWRT release.

Quich search for “ath11k openwrt” will give you answers.

3

Thank you, that was exactly what I wanted to know. So we have to wait. Even reforris probably does not support the band yet.

Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘5995 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6015 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6035 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6055 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6075 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6095 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6115 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6135 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6155 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6175 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6195 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6215 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6235 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6255 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6275 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6295 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6315 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6335 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6355 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6375 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6395 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6415 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6435 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6455 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6475 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6495 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6515 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6535 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6555 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6575 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6595 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6615 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6635 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6655 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6675 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6695 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6715 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6735 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6755 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6775 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6795 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6815 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6835 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6855 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6875 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6895 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6915 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6935 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6955 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6975 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘6995 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘7015 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘7035 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘7055 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘7075 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘7095 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:51 turris foris-controller[6972]: WARNING:foris_controller_backends.wifi:radio0: Frequency ‘7115 MHz’ does not fit supported bands (2.4 & 5 GHz)
Jan 12 11:42:55 turris foris-controller[6972]: ERROR:foris_controller_backends.uci:Uci transaction terminated.
Jan 12 11:42:55 turris foris-controller[6972]: ERROR:foris_controller_backends.wifi:Exception occured during the reset ‘UciException("[‘uci’, ‘-c’, ‘/etc/config/’, ‘-P’, ‘/tmp/.uci-foris-controller’, ‘import’, ‘wireless’]: command failed (b’uci: Unknown error\n’)")’
Jan 12 11:42:55 turris foris-controller[6972]: ERROR:foris_controller_backends.uci:Uci transaction terminated.
Jan 12 11:42:55 turris foris-controller[6972]: ERROR:foris_controller.message_router:Internal error occured <class ‘foris_controller.exceptions.UciException’>(’[‘uci’, ‘-c’, ‘/etc/config/’, ‘-P’, ‘/tmp/.uci-foris-controller’, ‘import’, ‘wireless’]: command failed (b’uci: Unknown error\n’)’):
