Openvpn connects but no data transmitted

wham · September 1, 2019, 9:57am

hello everyone

im new here so apologies if something goes wrong.

there were few similar topics but imo i couldnt find a resolution to my problem exactly. im using the newest TO OS 3 and openvpn plugin. installing went by the book. keys / profile is moved to a client device and CA is done to TO.

im trying to use openvpn from an android phone with openvpn for android application. it connects to my omnia as it should be but however it never gets data from my omnia. either ip is still the mobile operators own or then “nothing” works and android phone browser says error dns resolving. when disconnecting from vpn naturally data moves with mobile data.

i have tried to change from foris: All traffic through vpn and Use DNS from vpn choices. no changes.

and before im adding tons of logs i thought this was an easy wizard way to get openvpn working. so what im missing? first problem was “connection refused” but that was solved by to put openvpn service up from luci (i thought it was automatic when activating openvpn plugin from foris)

however im hoping to get help and once again apologies in advance if im missing something already

Jan_Coufal · September 2, 2019, 9:00am

Hi,
if you don’t change anything and everything is default only via foris is enabled, openvpn should be work. Check you in Luci, the vpn_turris interface has a address. The setting requires static ip and allocate ip in the vpn range. If you changed something on the firewall. check routing table.

wham · September 2, 2019, 1:07pm

thanks @Jan_Coufal for a reply!

luci says there is no ip at vpn_turris and protocol is unmanaged. so what i should change? to put static address protocol and insert my public ip to it?

Jan_Coufal · September 2, 2019, 7:13pm

there is a subnet in the foris. 10.xxxx. simply add static ip like 10.xxx.1.

Maxmilian_Picmaus · September 2, 2019, 11:09pm

Testing .ovpn profile on local network is usually failing. Use different ISP if possible. If you can’t (or it is still failing on mobile data), add “float” and “mssfix 0” to client-config file and retry. Also aside ensure you really have CA files present on router and eventually restart openvpn service (ensure it is running fine). You can valide the server-config without starting the service in terminal(there is option for that), so you know there is no issue with it.
You can also check if you have openvpn related rules in uci config for firewall/networking.(there is difference in actually used located in /tmp and those in /etc/config)

Vpn interface should be unmanaged, it is handled by openvpn daemon directly (if openvpn is up you will see the vpn_turris “active” in overview luci/interfaces section), if tunel will be active packet count will raise.

wham · September 3, 2019, 4:36am

hi

im using different ISP and thus mobile data - easy to check that it is not using vpn and if it is nothing works.

in foris:
Current settings
Network: 10.111.111.0/24
Device: tun_turris
Port: 1194
Route: 192.168.1.0/24
im using server side dns because otherwise there is no dns servers used in the client config.

in luci:
VPN_TURRIS

Uptime:** 0h 5m 32s
MAC-Address: 00:00:00:00:00:00
RX : 16.53 KB (260 Pkts.) <-- this came when i connected to vpn once succesfully - according to openvpn for android (but no data can be transmitted)
TX : 0 B (0 Pkts.)

Interfaces - VPN_TURRIS

[Firewall Settings]
vpn_turris: vpn_turris: Ethernet Adapter: “tun_turris” <-- this is checked under firewall settings

protocol is unmanaged as @Maxmilian_Picmaus said and RX value indicates.

however i cannot get any data out of my phone, like connecting to vpn blocks everything. if i put “exclude app from vpn” from openvpn for android. then of course an app i selected works with my mobile isp mobile data.

Maxmilian_Picmaus · September 3, 2019, 8:12am

How you have your zones/interfaces configured? This seems to be glitch in firewall rules (just wild guess). I’ve faced this some time ago and root cause was in my zone forwarding setup (you might have the vpn stream rejected by iptables/firewall (/etc/config/firewall, there you should have section reflecting the picture below.

wham · September 3, 2019, 7:33pm

thanks.

lets see. there were differences to your firewall setup.

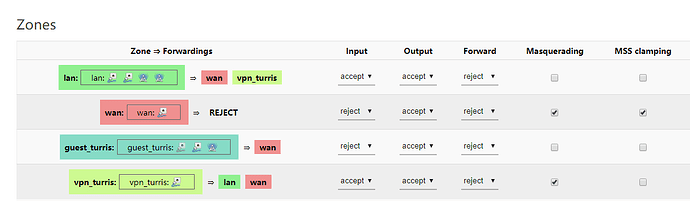

lan => wan vpn_turris was all accept - changed that to match the picture
wan => reject was the same
vpn_turris => lan wan was the same
quest_turris => wan was the same

now the interfaces under vpn_turris gets RX and TX data when i am browsing from the phones browser BUT the problem exists. when connected to vpn “my ip” shows to be mobile data ip (ISP) and TX data indicates just few KB so i dont believe it actually moves data but some “headers” / dns queries maybe?

when in foris i put All traffic through vpn and (Use DNS from vpn)
the vpn connection stop working at all and phones browser says err_name_not_resolved (webpage (server ip - eg. google - could not be found)

Maxmilian_Picmaus · September 4, 2019, 4:19pm

I assume you make masquerading (that should handle dns) and mss clamping same?
Can you share your client and server(there should be three “list push” directives for routing, dns and dhcp --> if missing maybe that’s the root cause) config and maybe the “firewall” as well?

Aside usually there is openvpn and system logs which should gave some info. On client side (not sure how it is on mobile, but on Windows you have option to trigger the client-log level ad-hoc, so you will receive some info what is happening).

wham · September 5, 2019, 4:42am

yes that is correct to the picture you provided.

to be honest, now i have no idea where i can get server side config. foris just “does it” but still does not help user to check every aspect it should be like this thread already shows.

this i can provide here, im trying to remove my personal info(hopefully) so dont get confused i put verbose log to the highest level.
