Omnia Full fiber conversion

I politely asked the sales guys for this only to be told there was no demand for it. So I made it myself, now I just need the sfp+ version on the WAN…

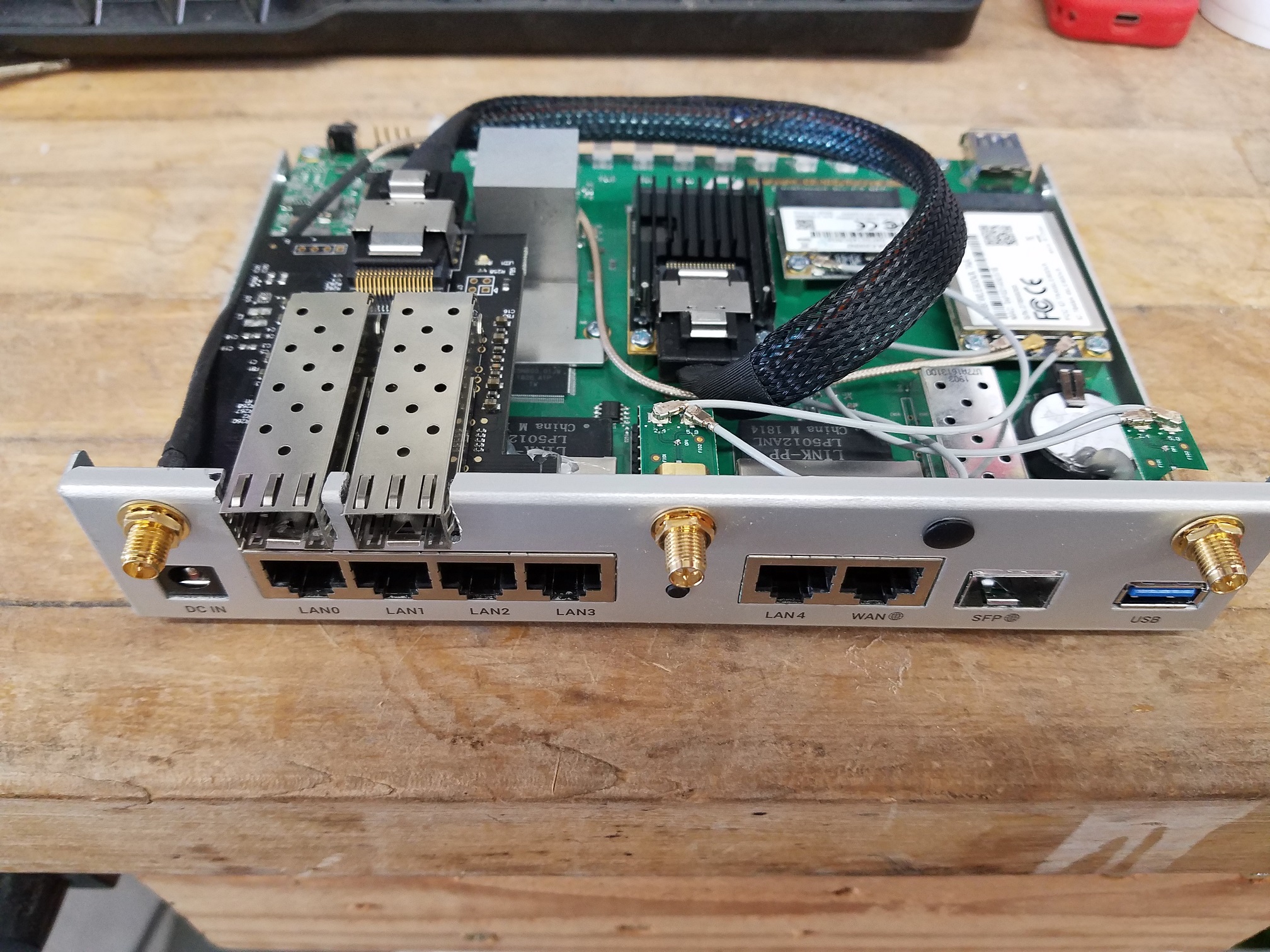

WAN/eth3/eth4 are a 1 gig SFP each.
PCIe 1 was moved to PCIe 2
PCIe 2 was moved to PCIe 3
PCIe 1 is now an i350 Dual port NIC, with 2 SFP daughter board.
Left antenna was moved to the middle.
Middle antenna cable was replaced with a 12 inch cable to reach the correct wireless card.

Software needed: igb kernel module, kmod_bonding
Configuration, eth3 and eth4 {intel SFP ports} set into bond0, LACP.
bond0 set into br-lan with SoC ethernets.
LACP failover/bond to Extreme x460 core switch.
